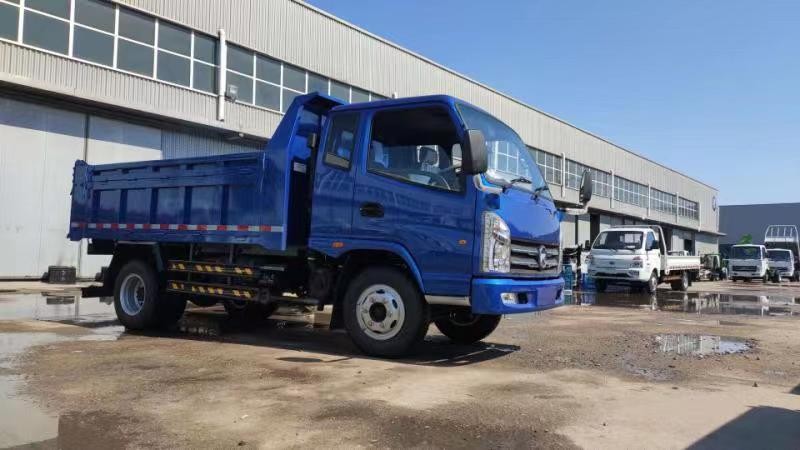

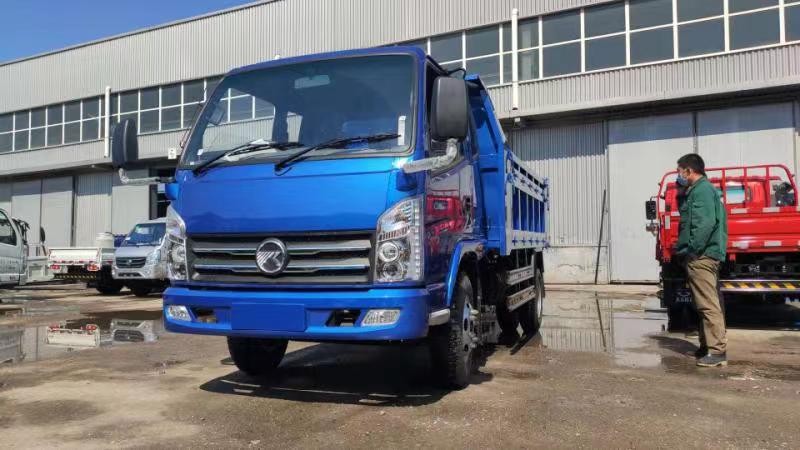

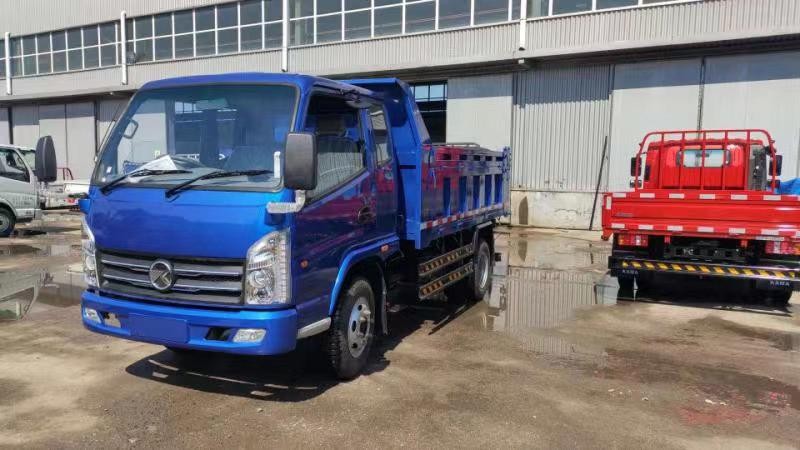

3.5 Tons Tipper Truck
| Type | Diesel |
| MODEL | KMC3041P3 |
| Suggest payload | 3.5T |
| Engin Model | YN4100 |
| Emission | Euro-I |
| Bore/Stroke（mm） | 100*115 |
| Displacement(litre) | 3.612 |
| Power(KW) | 66.2 |
| Rated Rotate speed（r/min) | 3200 |
| Cooling | WATER |
| Overall dimensions(LxWxH)(mm) | 5750*1945*2400 |
| Cargo Box Size(LxWxH)(mm) | 3440*1800*600+200 |
| Cabin | one and half CAB(1680mm) |
| Drive Type | 4x2 |
| Seats in cabin | 3 |
| Transmission | 530 with range shift |
| Curb Weight（Kg） | 3060 |
| Load Weight（Kg） | 3500 |
| G.V.W | 6560 |
| Wheel Base（mm） | 3200 |
| Brake system | air brake |
| Rear axle | 130Q |
| Front axle | 1069QD-2 |
| Front tire | 7.50R16 |
| Rear tire | 7.50R16 |
| Battery（V） | 24v (electric start) |
| Power steering | WITH |
| A/C | WITH |
| Qty/40HQ | 2 UNITS |
